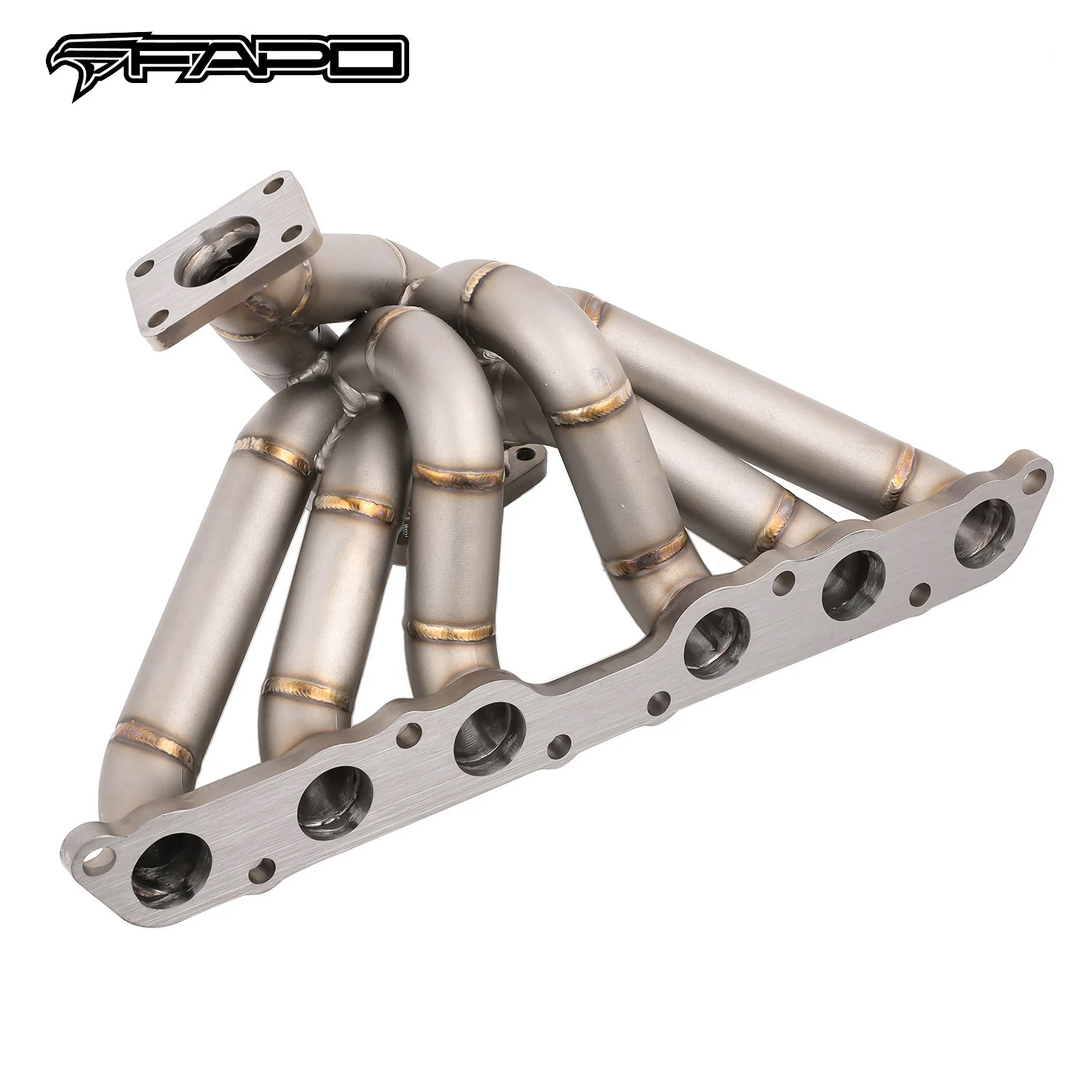

FAPO Single Turbo Manifold for Toyota Supra JZA80 Mk4 Lexus GS300 SC300 IS300 2JZGE T4

Application:

• 1993-1998 Toyota Supra Mk4 JZA80 with 2JZ-GE 3.0L Naturally Aspirated Engine
• 1993-2005 Lexus GS300 with 2JZ-GE 3.0L Naturally Aspirated Engine
• 1992-2000 Lexus SC300 with 2JZ-GE 3.0L Naturally Aspirated Engine
• 2001-2005 Lexus IS300 with 2JZ-GE 3.0L Naturally Aspirated Engine

Notes:

• For single turbo conversion of 2JZ-GE engine ONLY; NOT direct fit
• Does NOT fit for 2JZ-GTE twin turbo engine
• Does NOT direct fit for stock non-turbo setup

Features:

• Holds boost up to 1000HP

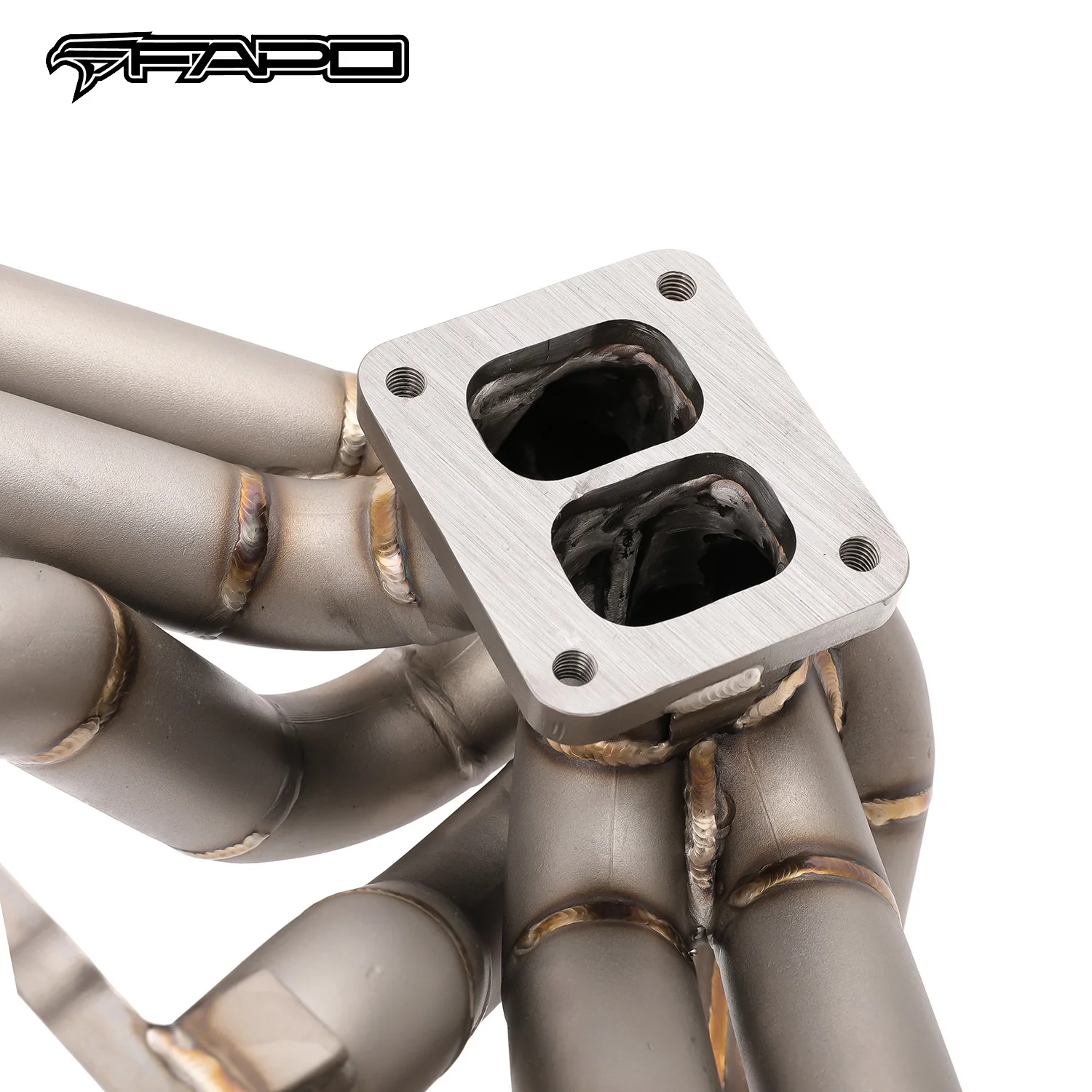

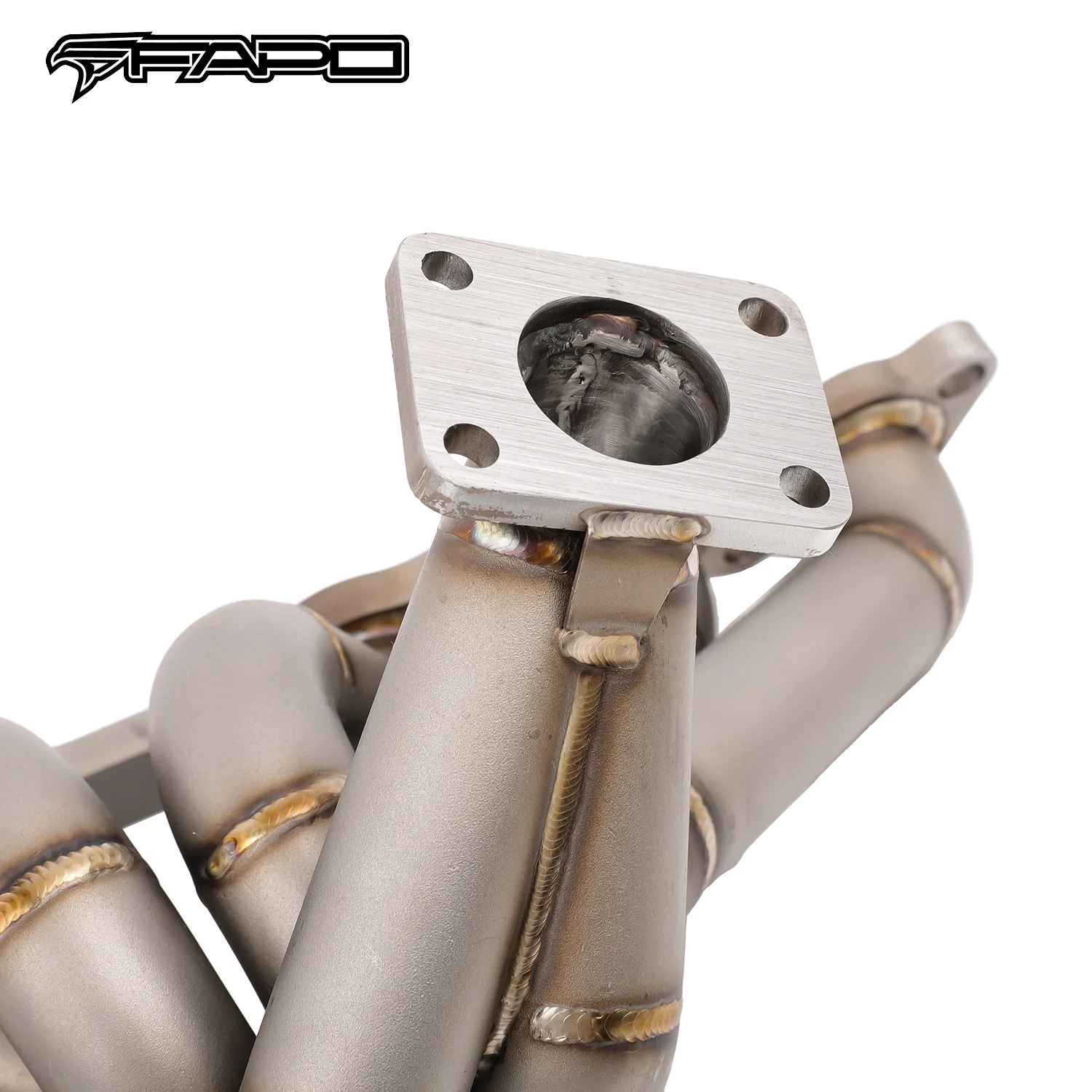

• Fits T4 Divided (Twin Scroll) Turbo Flange and 40/50mm (4-bolt) Wastegate Flange
• Excellent quality and durability to improve vehicle performance; engineered to be bolt-on replacement for easy installation
• Ram style equal length turbo manifold, allows turbo spool faster and improves throttle response
• Tubular manifold design with better exhaust flow and delivers more top-end power
• Equal length runners for balanced exhaust reversion and enhanced turbo performance

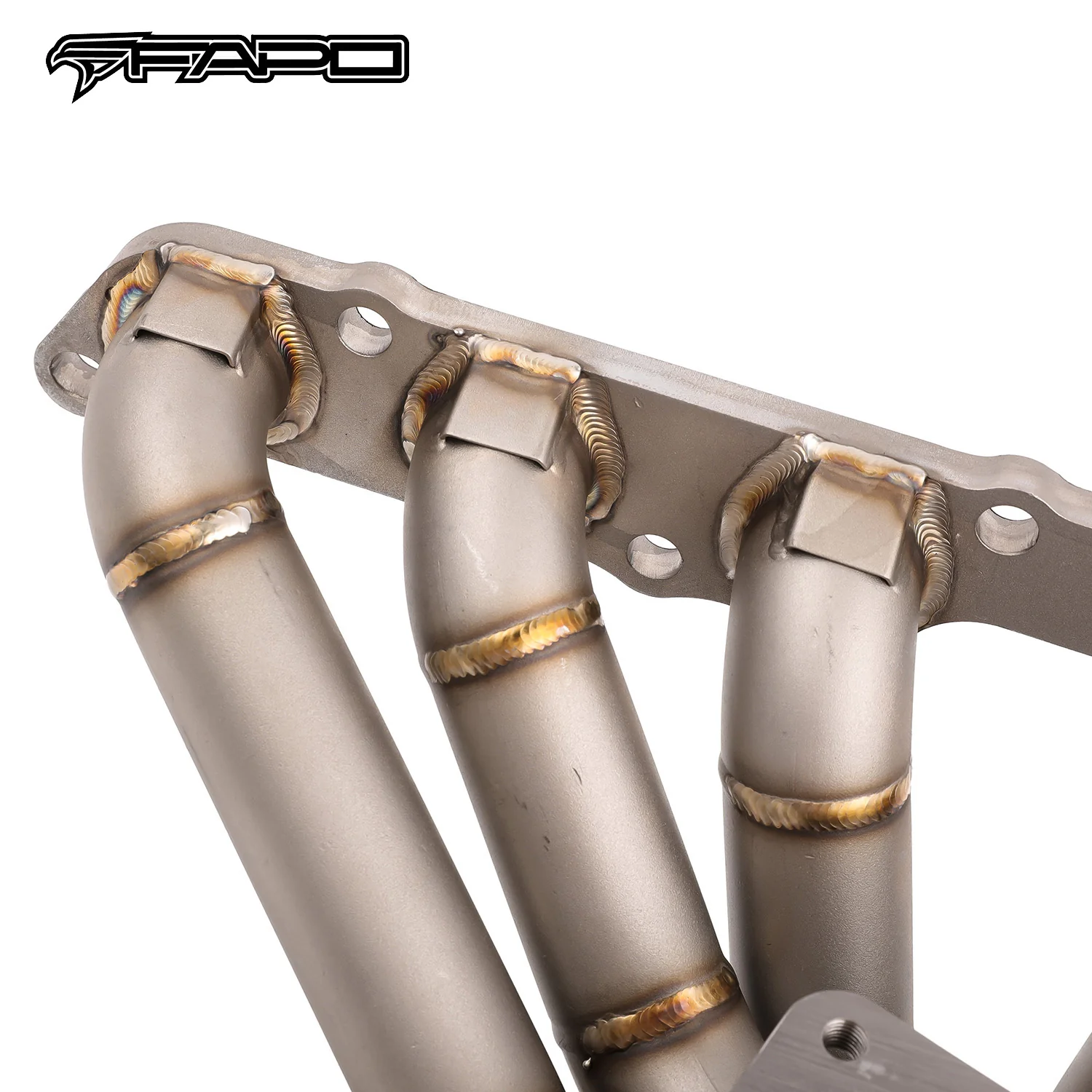

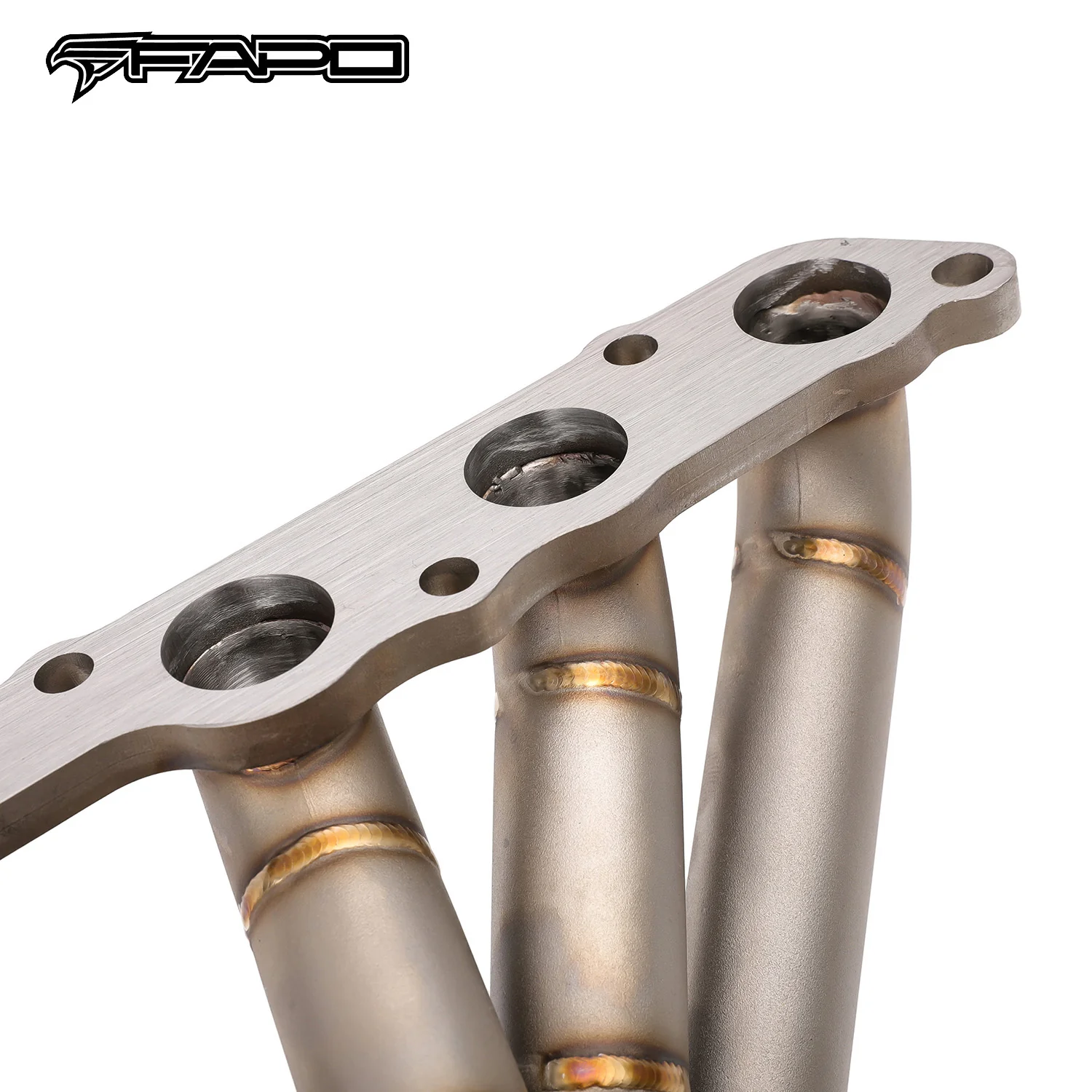

• Flat 6-hole engine flanges, after special process shaping, more suitable for engine installation position
• Precision aligned tubes made of schedule 40 cast 304 stainless steel, 3 mm thick wall
• Head flanges laser-cut from high-quality 1/2-inch thick steel plates
• Flange flattened by hydraulic press for precise and leak-free sealing

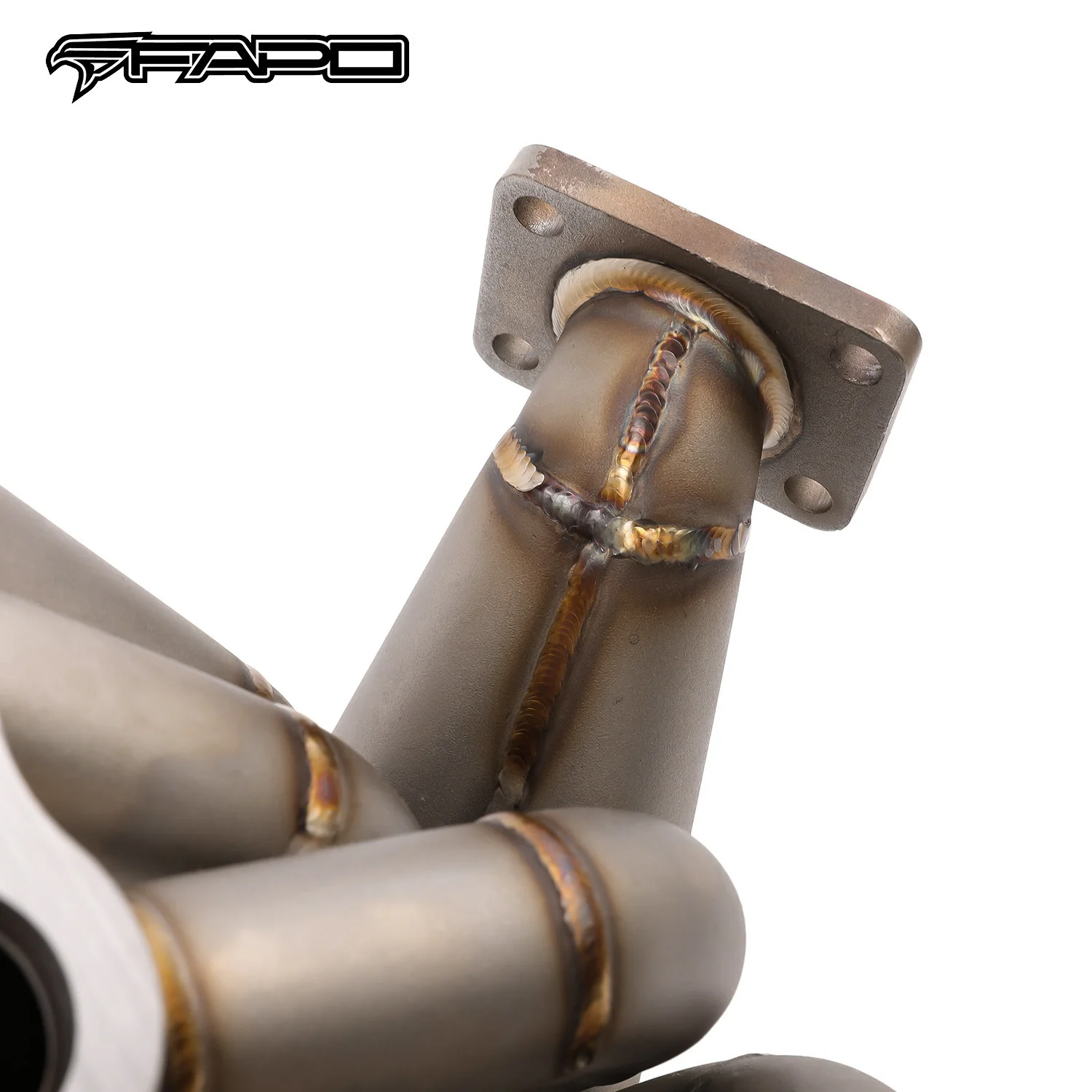

• All joints golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Sandblasted surface for extra hardness

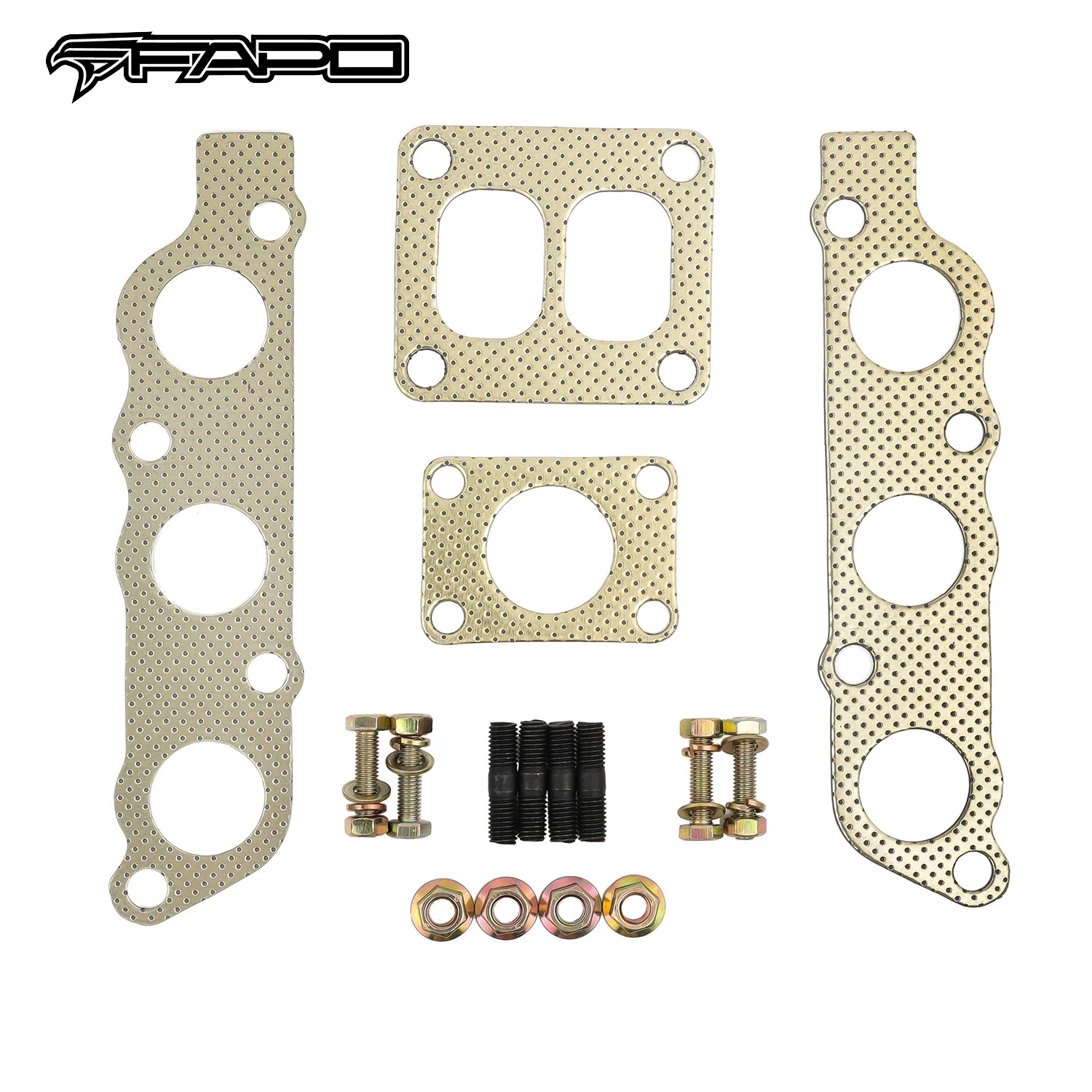

• Accessories shown in photos are included
• 1-year warranty for any manufacturing defect
• No instructions provided; professional installation recommended

Technical Specifications:

• Manifold Type: Tubular Single Turbo Manifold
• Runner Diameter: 1-5/8 in. (42mm)
• Runner Layout: Equal Length
• Turbo Fitment: T4 Divided (Twin Scroll)
• Turbo Mount Position: Top Mount
• Wastegate Fitment: 40/50mm (4-bolt)
• Head Flange Thickness: 1/2 in. (13.5mm)
• Pipe Thickness: Schedule 40 (3mm)
• Material: 304 Stainless Steel
• Finish: Sandblasted
